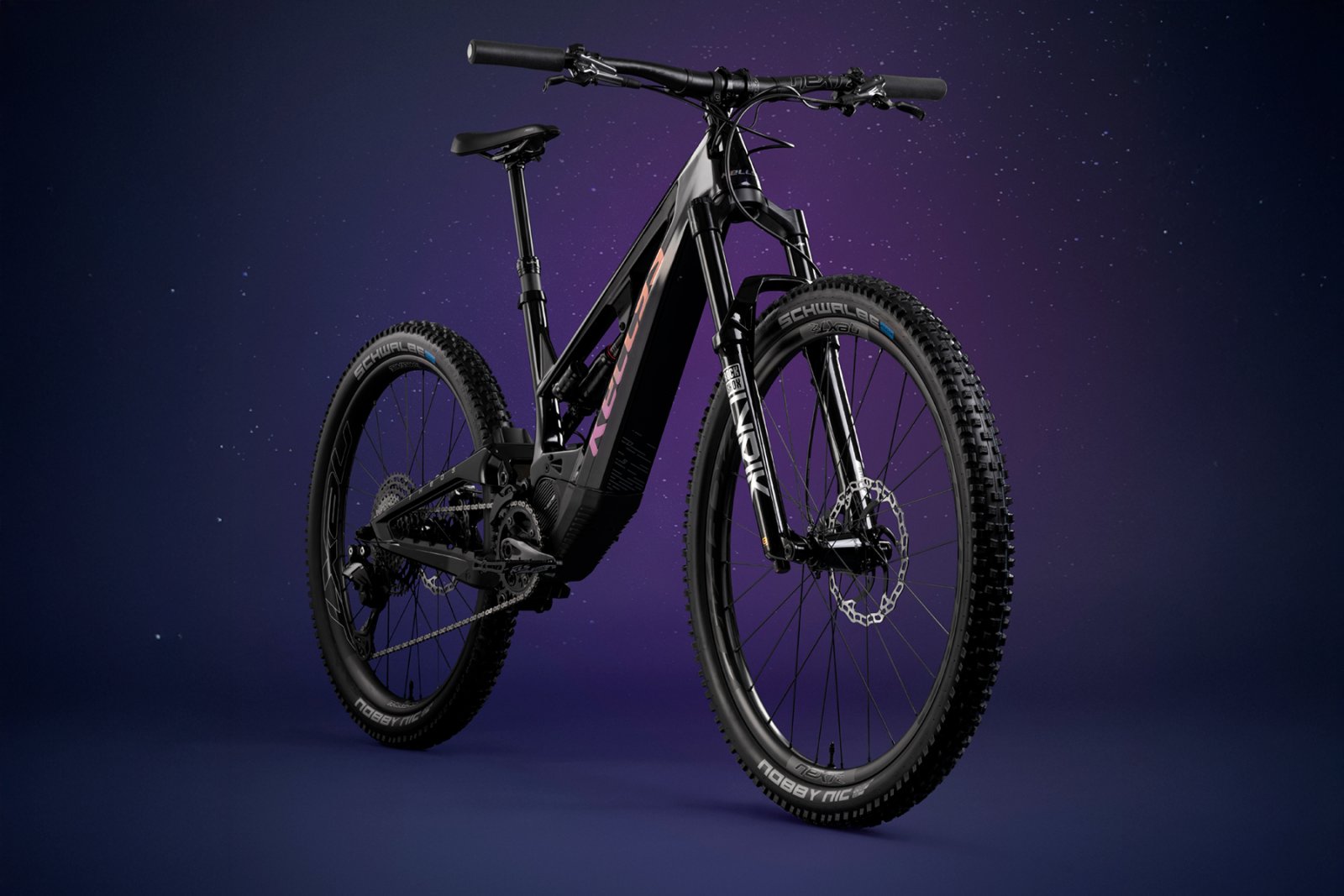

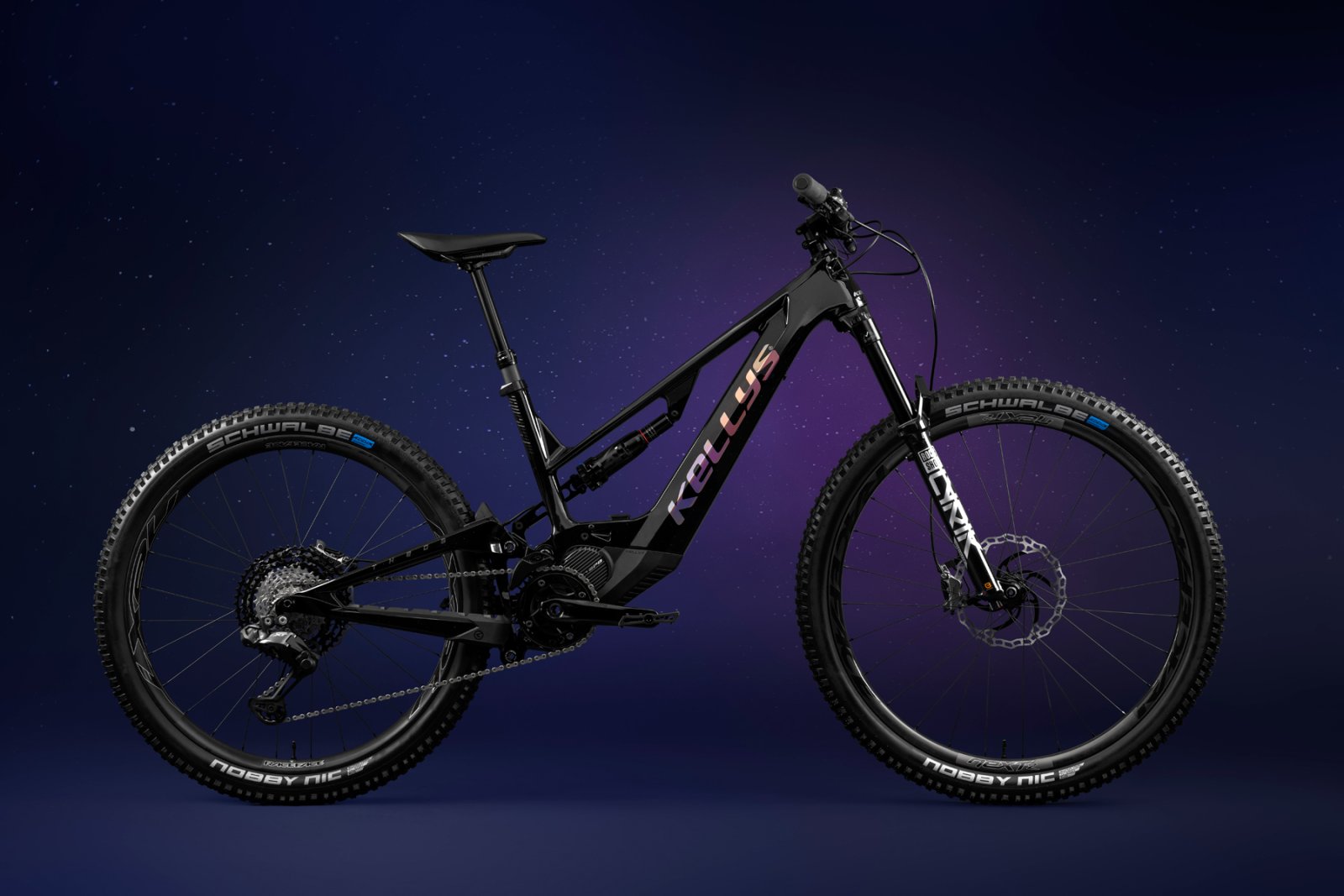

KELLYS THEOS F100 SH 29/27.5″ 825 Wh (solo su ordinazione)
Frame set
frameKELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8″ tapered HT, post mount 203 mm, mullet 29/27.5″+ wheelset, 12×148 mm Boost thru axle
forkROCK SHOX Lyrik Ultimate (29″) Boost, 150 mm, DebonAir / Charger 3 RC2 / Maxle Stealth 15 mm thru axle
rear shockROCK SHOX Super Deluxe Select+ RT, DebonAir / Open-Threshold (210×55 mm)
frame sizeM / L
Drive
motorSHIMANO EP801, 85 Nm, 36 V
batteryKELLYS Re-Charge K1 Li-ion internal removable 825 Wh / capacity 23 Ah
switch unitSHIMANO SW-EN600-L for assist
cranksetSHIMANO EM900 Hollowtech / CRE80-12-B (36T) – length 165 mm
rear derailleurSHIMANO Deore XT Di2 M8150 (direct mount)
shiftersSHIMANO SW-EN600-R Di2 for shifting
speed12
cassette sprocketSHIMANO XTR CS-M9100-12 (10-51T)
chainSHIMANO XTR CN-M9100 (122 links)
Brakes
brakesSHIMANO XTR M9120 Hydraulic Disc
brake leversSHIMANO XTR BL-M9120
brake rotorsGALFER Fixed Disc Wave®, DB004W 203 mm front / DBO34W 203 mm rear
Wheels
wheel setRACE FACE Next R 31 Carbon 622×31 front / RACE FACE Next R 36 Carbon 584×36 Microspline rear (15×110 mm / 12×148 mm)
thru axleROCK SHOX Stealth 15×110 mm front / Mr.control 12×177 mm rear
rear tyreSCHWALBE Nobby Nic Evo Super Trail 62-584 (27.5″x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
front tyreSCHWALBE Nobby Nic Evo Super Trail 62-622 (29″x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
Cockpit
head partsACROS 1.8 tapered semi-integrated

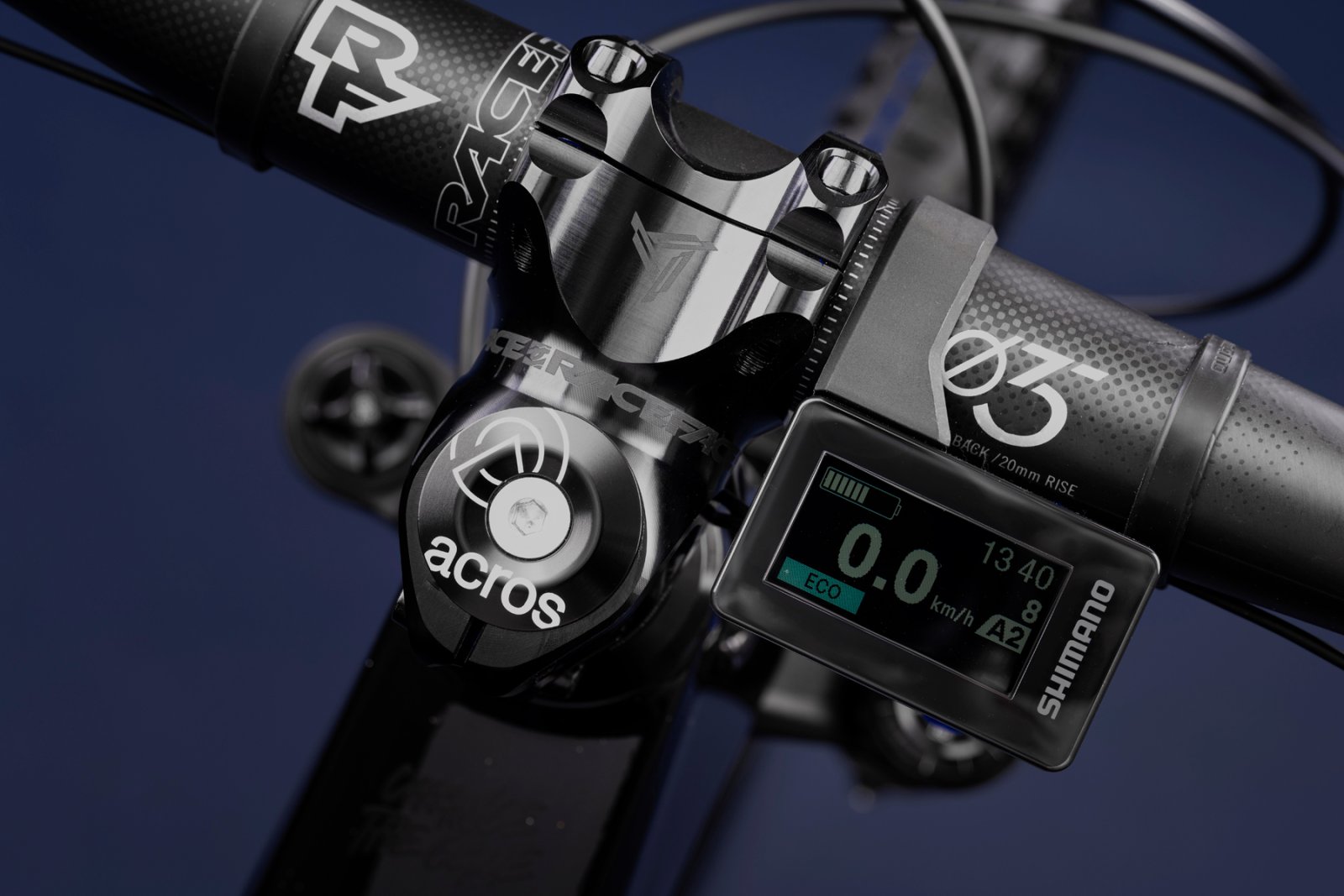

stemRACE FACE Turbine R 35 – diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
handlebarRACE FACE Next R 35 RiseBar – diam 35 mm / rise 20 mm / width 780 mm
gripsKLS Poison
seat postKS LEV-Ci Remote Telescopic – diam 30.9 mm / length 440 mm, travel 150 mm
saddlefi’zi:k Vento Argo R1
weight20.6 kg
10.999,00 €
SPECIFICATIONS
frameKELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8″ tapered HT, post mount 203 mm, mullet 29/27.5″+ wheelset, 12×148 mm Boost thru axle
forkROCK SHOX Lyrik Ultimate (29″) Boost, 150 mm, DebonAir / Charger 3 RC2 / Maxle Stealth 15 mm thru axle
rear shockROCK SHOX Super Deluxe Select+ RT, DebonAir / Open-Threshold (210×55 mm)
frame sizeM / L
Drive
motorSHIMANO EP801, 85 Nm, 36 V
batteryKELLYS Re-Charge K1 Li-ion internal removable 825 Wh / capacity 23 Ah
switch unitSHIMANO SW-EN600-L for assist
cranksetSHIMANO EM900 Hollowtech / CRE80-12-B (36T) – length 165 mm
rear derailleurSHIMANO Deore XT Di2 M8150 (direct mount)
shiftersSHIMANO SW-EN600-R Di2 for shifting
speed12
cassette sprocketSHIMANO XTR CS-M9100-12 (10-51T)
chainSHIMANO XTR CN-M9100 (122 links)
Brakes
brakesSHIMANO XTR M9120 Hydraulic Disc
brake leversSHIMANO XTR BL-M9120
brake rotorsGALFER Fixed Disc Wave®, DB004W 203 mm front / DBO34W 203 mm rear
Wheels
wheel setRACE FACE Next R 31 Carbon 622×31 front / RACE FACE Next R 36 Carbon 584×36 Microspline rear (15×110 mm / 12×148 mm)
thru axleROCK SHOX Stealth 15×110 mm front / Mr.control 12×177 mm rear
rear tyreSCHWALBE Nobby Nic Evo Super Trail 62-584 (27.5″x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
front tyreSCHWALBE Nobby Nic Evo Super Trail 62-622 (29″x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
Cockpit
head partsACROS 1.8 tapered semi-integrated
stemRACE FACE Turbine R 35 – diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
handlebarRACE FACE Next R 35 RiseBar – diam 35 mm / rise 20 mm / width 780 mm
gripsKLS Poison
seat postKS LEV-Ci Remote Telescopic – diam 30.9 mm / length 440 mm, travel 150 mm
saddlefi’zi:k Vento Argo R1
weight20.6 kg
